Dali Lighting Control Wiring Diagram - 200W DT8 CCT Dali Driver | ENTTEC : This is what it's all about:. Wiring between floors can be added later. One individual network isn't enough to cover an entire building; Digital addressable lighting interface (dali) control gear xmc™ microcontrollers july 2016. Dali typically consist of a dali gateway/controller (which is in our case lunatone dali sci module connected to the openmotics can control), a dali power supply and multiple slave devices. Dali systems enable personal dimming control for occupants.
It is a lighting interface system that allows lighting to use a digital signal for more precise and flexible control. Dali typically consist of a dali gateway/controller (which is in our case lunatone dali sci module connected to the openmotics can control), a dali power supply and multiple slave devices. • lighting control and motion detection can be deactivated. Dali is stands for digital addressable lighting interface. • wiring between hubs on a floor must be installed before startup.
Every dali line requires a dali power supply. Quantum ® ethernet wiring example of ethernet wiring: Typical dali layout fluorescent light emergency light downlight dali network boardroom showroom. In any dimming system, the ballasts and controllers must be able to speak the same language. With nlight, you can control indoor and outdoor spaces seamlessly while reducing energy costs, aiding in building code compliance, improving occupant comfort, and much more. The module has a single dali address and common control wiring is used for both normal lighting control and emergency test control. Relatively simple to install and highly configurable without the need to change device connections or wiring, it is a very popular control option for business premises and offices, shops, restaurants and hotels, as well as large domestic settings. In fact, one dali network can accommodate up to 64 dali ballasts.
Searching for details regarding dali lighting control wiring diagram?
Dali (digital addressable lighting interface) is a network based system to control lights and dimmers. Riser diagram quantum light management hub quantum light management hub quantum light. Refer to our dali concepts page for more information. Put simply, the lights are wired according to the australian electrical standards with an additional twin run to accommodate full dali control. Digital addressable lighting interface (dali) control gear xmc™ microcontrollers july 2016. Wiring between floors can be added later. About press copyright contact us creators advertise developers terms privacy policy & safety how youtube works test new features press copyright contact us creators. Typical dali layout fluorescent light emergency light downlight dali network boardroom showroom. It is a lighting interface system that allows lighting to use a digital signal for more precise and flexible control. The module has a single dali address and common control wiring is used for both normal lighting control and emergency test control. In any dimming system, the ballasts and controllers must be able to speak the same language. Rather, several must be linked together to create a. Dimming controls fundamentals power supply lamp driver signal from lighting control system lamp 10v 1v time example = 4hrs 50% 95% 0% wiring of fittings for signal lighting control lightning control system varies between 0 and 10v to adjust the output level of the lighting
Guidelines for intelligent lighting control with dali. 64 addresses (max.) per dali loop (max. Dali wiring up to 64 dali lamps per network, 16 groups within each network and 16 scenes per group diagram 2: It is a lighting interface system that allows lighting to use a digital signal for more precise and flexible control. Dali (digital addressable lighting interface) is a network based system to control lights and dimmers.

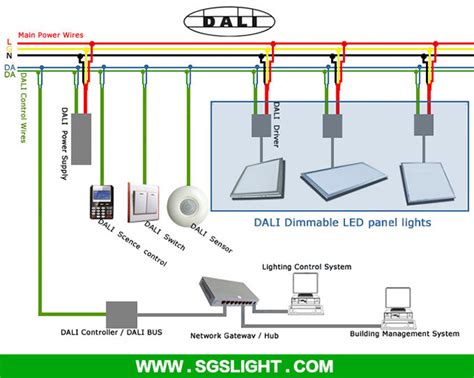

Refer to our dali concepts page for more information. The dali protocol is useful if luminaires need to respond to more than one input device (such as a wall switch and a daylight sensor). How are digital ballasts wired into the lighting system? Put simply, the lights are wired according to the australian electrical standards with an additional twin run to accommodate full dali control. With nlight, you can control indoor and outdoor spaces seamlessly while reducing energy costs, aiding in building code compliance, improving occupant comfort, and much more. The dali line is a 4 or 5 wire system (requiring active, neutral and two control wires). A dali line can be connected to a maximum of 64 dali type devices. Communication between lighting control products.
It shows the components of the circuit as simplified shapes, and also the power and also signal connections in between the gadgets.
Wiring between floors can be added later. Put simply, the lights are wired according to the australian electrical standards with an additional twin run to accommodate full dali control. Dali typically consist of a dali gateway/controller (which is in our case lunatone dali sci module connected to the openmotics can control), a dali power supply and multiple slave devices. Dimming controls fundamentals power supply lamp driver signal from lighting control system lamp 10v 1v time example = 4hrs 50% 95% 0% wiring of fittings for signal lighting control lightning control system varies between 0 and 10v to adjust the output level of the lighting Each is given an address in the dali system, and the loop is connected to a dali control device. Dali (digital addressable lighting interface) is a network based system to control lights and dimmers. Communication between lighting control products. Dali is an international standard lighting control system. 1 ø 86 5 46. A wiring diagram is a streamlined conventional pictorial representation of an electric circuit. Nlight ® is your network lighting controls system with wired or wireless options, that is easy to specify, install, and use that grows with your business today and tomorrow. One individual network isn't enough to cover an entire building; Searching for details regarding dali lighting control wiring diagram?
How are digital ballasts wired into the lighting system? You might be a technician that intends to look for references or resolve existing problems. Dali dali dali wiring consists of 2 control wires with a current limited power supply supplying a maximum current of 250ma. In the case of digital dimming systems, this language is either proprietary unique to a particular manufacturer (and other adopters, if allowed) or an open standard, such as the digital addressable lighting interface (dali) protocol. In any dimming system, the ballasts and controllers must be able to speak the same language.
•dali allows more than one master to control the bus, sending commands to the lighting. Wiring between floors can be added later. Typical dali layout fluorescent light emergency light downlight dali network boardroom showroom. In fact, one dali network can accommodate up to 64 dali ballasts. Communication between lighting control products. Rather, several must be linked together to create a. Dali is an international standard lighting control system. Each is given an address in the dali system, and the loop is connected to a dali control device.
Dali (digital addressable lighting interface) is a network based system to control lights and dimmers.
Each is given an address in the dali system, and the loop is connected to a dali control device. You might be a technician that intends to look for references or resolve existing problems. Installing livelink starts with conventional dali wiring: This unit will automatically switch the lights off after a preset delay if no motion is detected. The eight light fittings (addressed from 00 to 07) can be any light fitting from any manufacturer fitted with dali ecg (electronic control gear). Dali dali dali wiring consists of 2 control wires with a current limited power supply supplying a maximum current of 250ma. The module has a single dali address and common control wiring is used for both normal lighting control and emergency test control. 1 ø 86 5 46. Alternatively, if you wish to use only the switchdim feature of tridonic drivers and ballasts, you can wire per the. Led drivers and ballasts are connected using class 1 (inside the conduit) or class 2 (outside the conduit) wiring to make up a loop of no more than 64 led drivers or ballasts. It is a lighting interface system that allows lighting to use a digital signal for more precise and flexible control. One individual network isn't enough to cover an entire building; Dali typically consist of a dali gateway/controller (which is in our case lunatone dali sci module connected to the openmotics can control), a dali power supply and multiple slave devices.
