Wiring A Fan With Two Switches : How To Wire Ceiling Fan With Light Switch Youtube / Though it is not difficult to wire a double switch, careful attention to safety is crucial to prevent injury.. Because your junction box wiring has a separate black and red wire, this normally indicates that there are two separate wall switches, one for the fan motor (black) and. The wiring for separate two switches may look very complicated. Ceiling fan wiring (two switches) this ceiling fan wiring configuration is quite common. One source is spliced to each switch with a pigtail to power the two lights. 4.8 out of 5 stars 35.
Once i turn the fan switch on, then the fan has power, meaning i can then turn it on or off with the remote. For this, the white in the three core is used to take the feed down to the two switches, and the red and black carry the two switched feeds back, these would then be connected to the live feeds into the fan (they're usually black and blue, and should have tags indicating which is which). Ceiling fan is wired for 1 hot wire only, and functions are through remote. Click the icons below to get our nec. Connect the white wire from the ceiling to the white wire from the fan.

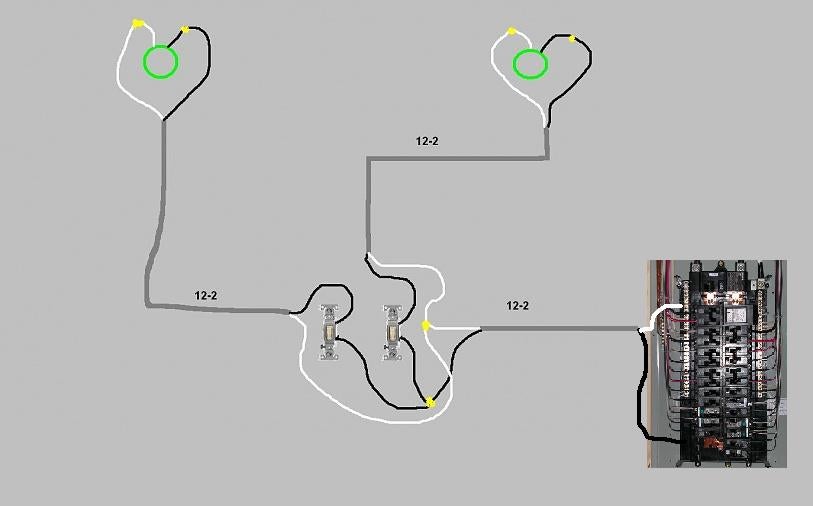

Two Ceiling Fans Two Switches One Breaker Diy Home Improvement Forum from www.diychatroom.com There are also lots of really convenient switches that put this dual control into one neat little package. Though it is not difficult to wire a double switch, careful attention to safety is crucial to prevent injury. Ceiling fan wiring (two switches) this ceiling fan wiring configuration is quite common. I opened top cover of fan and traced blue. Click the icons below to get our nec. Three way switch wiring will then need to be installed between the two switch locations. Tim, the power must be separated at the power source before the switches, then one switch will be wired for each separate function. The wiring for separate two switches may look very complicated.
This video is about how to wire an existing ceiling fan for separate switches to control fan and light
Here two switches are wired in the same box to control two separate lights. This setup allows you to switch the light in the fixture and also turn the fan off and on from a separate switch. All the fan switch does is provide power to the fan, meaning if it is off, the fan nor it's light will turn on at all. Other than the typical switches and wiring items, you will need 2 relays with 120 vac coils and normally open (no) contacts rated for at least 5 amps at 120vac, inductive duty. This setup allows you to control the light and fan separately. There are also lots of really convenient switches that put this dual control into one neat little package. A remote is installed within the fan, and one of the two wall switches is bypassed in order for remote access. Though it is not difficult to wire a double switch, careful attention to safety is crucial to prevent injury. This wiring diagram illustrates the connections for a ceiling fan and light with two switches, a speed controller for the fan and a dimmer for the lights. The basic concept of this whole thing is that both switches will be fed through power supply line. So if you want both of them controlled by the switches you need to do a little rewiring in the switch box. Copper or green wire is the ground wire and keeps your fan from experience power surges. It allows for separate control over both the fan and the light in the room.
Click the icons below to get our nec. Free shipping on orders over $25 shipped by amazon. Because your junction box wiring has a separate black and red wire, this normally indicates that there are two separate wall switches, one for the fan motor (black) and. My house is wired with 2 switches for ceiling fan, one for light, one for fan. The basic concept of this whole thing is that both switches will be fed through power supply line.
How To Wire A Bathroom Fan And Light On Separate Switches from www.laokoondesign.com It allows for separate control over both the fan and the light in the room. Click the icons below to get our nec. Switching the light and fan from separate switches (two switches) this is the most versatile way to electrically wire a ceiling fan with a light kit. One source is spliced to each switch with a pigtail to power the two lights. If the fan draws more than 5 amps, then the relay should be sized accordingly. Get it as soon as mon, jul 12. But basically i have two switches. This means that you will have black, red, white and bare.
Fan speed would need to be controlled by a pull chain or in some newer fans a wireless remote.
A remote is installed within the fan, and one of the two wall switches is bypassed in order for remote access. Click the icons below to get our nec. Other than the typical switches and wiring items, you will need 2 relays with 120 vac coils and normally open (no) contacts rated for at least 5 amps at 120vac, inductive duty. If you have a blue and black wire coming from your household circuit, you should have two switches on your wall. Again, you must determine which wires are controlled by which switch. But it's not that difficult to understand once you get a hang of it. Get it as soon as wed, jul 7. Tim, the power must be separated at the power source before the switches, then one switch will be wired for each separate function. Ceiling fan wiring (two switches) this ceiling fan wiring configuration is quite common. Wiring two switches for two lights. This means that you will have black, red, white and bare. You can wire a new ceiling fan with a remote to a wall switch or retrofit an older fan to accept an aftermarket remote kit. Here two switches are wired in the same box to control two separate lights.
Once i turn the fan switch on, then the fan has power, meaning i can then turn it on or off with the remote. This means that you will have black, red, white and bare. But basically i have two switches. Ceiling fan is wired for 1 hot wire only, and functions are through remote. Ceiling fan and light kit control options.
How To Wire 3 Speed Fan Switch from waterheatertimer.org Click the icons below to get our nec. So if you want both of them controlled by the switches you need to do a little rewiring in the switch box. The red wire from the junction box connects to the blue wire on the ceiling fan. 1 flip off the circuit breaker controlling the wall switch in the room. The ceiling fan with two switches will have two sets of wires. I opened top cover of fan and traced blue. After that, each of the switches will be feeding either light or fan kit. Connect a black wire from the ceiling to the black wire from the fan.
A remote is installed within the fan, and one of the two wall switches is bypassed in order for remote access.
The ceiling fan with two switches will have two sets of wires. After that, each of the switches will be feeding either light or fan kit. This setup allows you to switch the light in the fixture and also turn the fan off and on from a separate switch. If the fan draws more than 5 amps, then the relay should be sized accordingly. 4.8 out of 5 stars 35. So if you want both of them controlled by the switches you need to do a little rewiring in the switch box. Free shipping on orders over $25 shipped by amazon. Three way switch wiring will then need to be installed between the two switch locations. Other than the typical switches and wiring items, you will need 2 relays with 120 vac coils and normally open (no) contacts rated for at least 5 amps at 120vac, inductive duty. Ceiling fan is wired for 1 hot wire only, and functions are through remote. I opened top cover of fan and traced blue. If you had a red wire coming from your ceiling, it is hooked up to your wall switch. Connect the white wire from the ceiling to the white wire from the fan.
